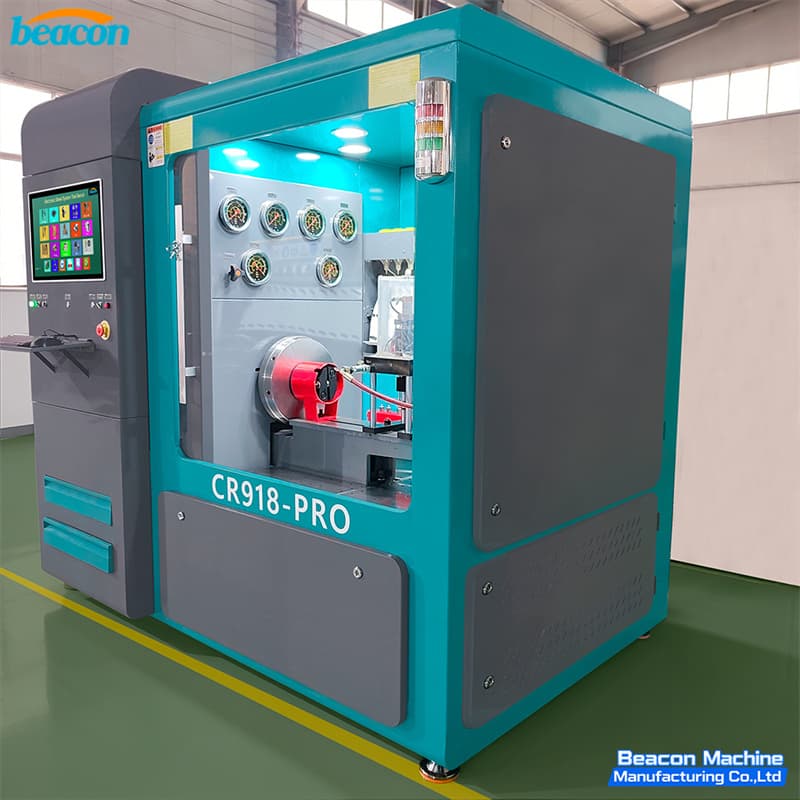

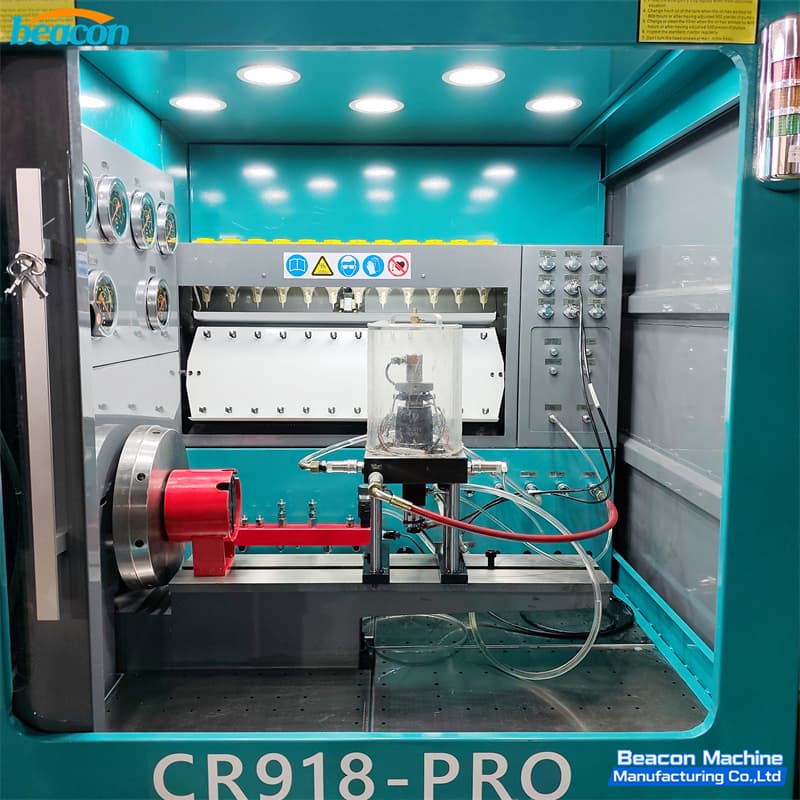

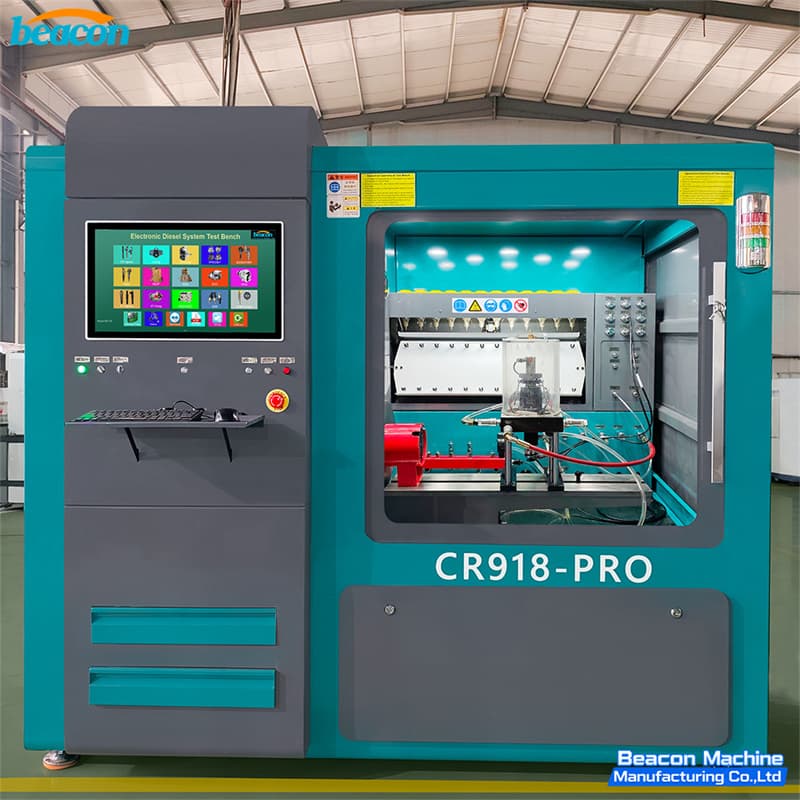

Elevate your remanufacturing standards to the absolute peak with our professional multidimensional diesel fuel diagnostic console. The CR918-PRO series is meticulously crafted to be the definitive centerpiece of any elite automotive laboratory, handling diverse heavy-duty commercial demands with unprecedented stability.
Unlike standard calibration equipment, this flagship CR918-PRO multi-domain analytical rig integrates cutting-edge processing algorithms to evaluate both mechanical durability and electronic response simultaneously. Mechanics can now identify micro-fluctuations in flow rates instantly, eliminating diagnostic guesswork.
Secure your competitive edge in the diesel repair market. By adopting this high-precision omni-system pump tuning machine, your facility will seamlessly service an extensive spectrum of commercial engines, drastically lowering turnaround times and maximizing overall service profitability.








| Item | Specification |
|---|---|
| Machine Type | Multifunction diesel test bench |
| Applicable Components | Diesel injectors/high-pressure pumps |
| Drive Motor Power | 15 kW |
| Power Supply | 380V / 50Hz (optional 220V) |
| Control System | Industrial PC + touch screen |
| Pressure Control Range | 0-2800 bar |
| Pump Speed Range | 0-4000 rpm |
| Injection Frequency | 0-120 Hz |
| Flow Measurement | Electronic flow measurement system |
| Test Functions | Injection volume, backflow, leakage |
| Fuel Medium | Calibration oil / diesel |
| Filtration Accuracy | 3 μm |
| Cooling Method | Oil circulation cooling |
| Data Storage | Internal database + USB export |
| Safety System | Emergency stop & overpressure protection |
| Noise Level | ≤75 dB |
| Dimensions | 1600*1000*1900 mm |
| Net Weight | Approx. 820 kg |
